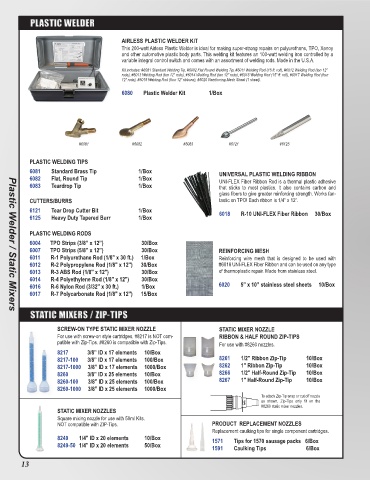

Page 16 - IES_ Catalog 2019.indd
P. 16
PLASTIC WELDER
AIRLESS PLASTIC WELDER KIT
This 200-watt Airless Plastic Welder is ideal for making super-strong repairs on polyurethane, TPO, Xenoy
and other automotive plastic body parts. This welding kit features an 100-watt welding iron controlled by a
variable integral control switch and comes with an assortment of welding rods. Made in the U.S.A.
Kit includes: #6081 Standard Welding Tip, #6082 Flat Round Welding Tip, #6011 Welding Rod (15 ft. roll), #6012 Welding Rod (ten 12”
rods), #6013 Welding Rod (ten 12” rods), #6014 Welding Rod (ten 12” rods), #6016 Welding Rod (15” ft. roll), #6017 Welding Rod (four
12” rods), #6018 Welding Rod (four 12” ribbons), #6020 Reinforcing Mesh Sheet (1 sheet).
6080 Plastic Welder Kit 1/Box
#6081 #6082 #6083 #6121 #6125
PLASTIC WELDING TIPS
6081 Standard Brass Tip 1/Box UNIVERSAL PLASTIC WELDING RIBBON
6082 Flat, Round Tip 1/Box UNI-FLEX Fiber Ribbon Rod is a thermal plastic adhesive
6083 Teardrop Tip 1/Box that sticks to most plastics. It also contains carbon and
glass fibers to give greater reinforcing strength. Works fan-
CUTTERS/BURRS tastic on TPO! Each ribbon is 1/4” x 12”.
6121 Tear Drop Cutter Bit 1/Box 6018 R-10 UNI-FLEX Fiber Ribbon 30/Box
6125 Heavy Duty Tapered Burr 1/Box
PLASTIC WELDING RODS
6004 TPO Strips (3/8” x 12”) 30/Box
6007 TPO Strips (5/8” x 12”) 30/Box REINFORCING MESH
6011 R-1 Polyurethane Rod (1/8" x 30 ft.) 1/Box Reinforcing wire mesh that is designed to be used with
6012 R-2 Polypropylene Rod (1/8" x 12") 30/Box #6018 UNI-FLEX Fiber Ribbon and can be used on any type
6013 R-3 ABS Rod (1/8" x 12") 30/Box of thermoplastic repair. Made from stainless steel.
6014 R-4 Polyethylene Rod (1/8" x 12") 30/Box
6016 R-6 Nylon Rod (3/32" x 30 ft.) 1/Box 6020 5” x 10” stainless steel sheets 10/Box
6017 R-7 Polycarbonate Rod (1/8" x 12") 15/Box
STATIC MIXERS / ZIP-TIPS
Plastic Welder / Static Mixers
SCREW-ON TYPE STATIC MIXER NOZZLE STATIC MIXER NOZZLE
For use with screw-on style cartridges. #8217 is NOT com- RIBBON & HALF ROUND ZIP-TIPS
patible with Zip-Tips. #8260 is compatible with Zip-Tips. For use with #8260 nozzles.
8217 3/8” ID x 17 elements 10/Box
8217-100 3/8” ID x 17 elements 100/Box 8261 1/2" Ribbon Zip-Tip 10/Box
8217-1000 3/8” ID x 17 elements 1000/Box 8262 1" Ribbon Zip-Tip 10/Box
8260 3/8” ID x 25 elements 10/Box 8266 1/2" Half-Round Zip-Tip 10/Box
8260-100 3/8” ID x 25 elements 100/Box 8267 1" Half-Round Zip-Tip 10/Box
8260-1000 3/8” ID x 25 elements 1000/Box
To attach Zip-Tip snap or cut off nozzle
as shown. Zip-Tips only fit on the
#8260 static mixer nozzles.
STATIC MIXER NOZZLES
Square mixing nozzle for use with 50ml Kits.
NOT compatible with ZIP-Tips. PRODUCT REPLACEMENT NOZZLES
Replacement caulking tips for single component cartridges.
8249 1/4" ID x 20 elements 10/Box 1571 Tips for 1570 sausage packs 6/Box
8249-50 1/4” ID x 20 elements 50/Box 1591 Caulking Tips 6/Box
13
