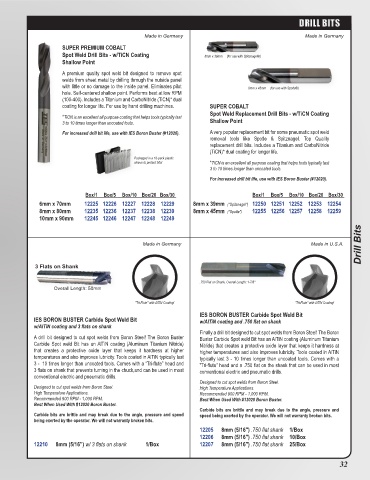

DRILL BITS

Made in Germany Made in Germany
SUPER PREMIUM COBALT
Spot Weld Drill Bits - w/TiCN Coating 8mm x 39mm (for use with Spitznagel®)
Shallow Point
A premium quality spot weld bit designed to remove spot
welds from sheet metal by drilling through the outside panel
with little or no damage to the inside panel. Eliminates pilot 8mm x 45mm (for use with Spotle®)
hole. Self-centered shallow point. Performs best at low RPM
(100-400). Includes a Titanium and CarboNitride (TiCN)* dual
coating for longer life. For use by hand drilling machines. SUPER COBALT
Spot Weld Replacement Drill Bits - w/TiCN Coating
*TiCN is an excellent all purpose coating that helps tools typically last
3 to 10 times longer than uncoated tools. Shallow Point

For increased drill bit life, use with IES Boron Buster (#12020). A very popular replacement bit for some pneumatic spot weld
removal tools like Spotle & Spitznagel. Top Quality
replacement drill bits. Includes a Titanium and CarboNitride
(TiCN)* dual coating for longer life.
Packaged in a 10-pack plastic
sleeve to protect bits! *TiCN is an excellent all purpose coating that helps tools typically last
3 to 10 times longer than uncoated tools.

For increased drill bit life, use with IES Boron Buster (#12020).

Box/1 Box/5 Box/10 Box/20 Box/30 Box/1 Box/5 Box/10 Box/20 Box/30
6mm x 70mm 12225 12226 12227 12228 12229 8mm x 39mm (“Spitznagel”) 12250 12251 12252 12253 12254
8mm x 80mm 12235 12236 12237 12238 12239 8mm x 45mm (“Spotle”) 12255 12256 12257 12258 12259
10mm x 90mm 12245 12246 12247 12248 12249
Drill Bits

Made in Germany Made in U.S.A.

3 Flats on Shank

.750 Flat on Shank, Overall Length: 1-7/8"
Overall Length: 50mm

"Tri-Flute" with AITiN Coating! "Tri-Flute" with AITiN Coating!
IES BORON BUSTER Carbide Spot Weld Bit
IES BORON BUSTER Carbide Spot Weld Bit w/AITiN coating and .750 flat on shank
w/AITiN coating and 3 flats on shank
Finally a drill bit designed to cut spot welds from Boron Steel! The Boron
A drill bit designed to cut spot welds from Boron Steel! The Boron Buster Buster Carbide Spot weld Bit has an AlTiN coating (Aluminum Titanium
Carbide Spot weld Bit has an AlTiN coating (Aluminum Titanium Nitride) Nitride) that creates a protective oxide layer that keeps it hardness at
that creates a protective oxide layer that keeps it hardness at higher higher temperatures and also improves lubricity. Tools coated in AlTiN
temperatures and also improves lubricity. Tools coated in AlTiN typically last typically last 3 - 10 times longer than uncoated tools. Comes with a
3 - 10 times longer than uncoated tools. Comes with a “Tri-flute” head and "Tri-flute" head and a .750 flat on the shank that can be used in most
3 flats on shank that prevents turning in the chuck,and can be used in most conventional electric and pneumatic drills.
conventional electric and pneumatic drills.
Designed to cut spot welds from Boron Steel.
Designed to cut spot welds from Boron Steel. High Temperature Applications.
High Temperature Applications. Recommended 900 RPM - 1,000 RPM.
Recommended 900 RPM - 1,000 RPM. Best When Used With #12020 Boron Buster.
Best When Used With #12020 Boron Buster.
Carbide bits are brittle and may break due to the angle, pressure and
Carbide bits are brittle and may break due to the angle, pressure and speed speed being exerted by the operator. We will not warranty broken bits.
being exerted by the operator. We will not warranty broken bits.
12205 8mm (5/16") .750 flat shank 1/Box
12206 8mm (5/16") .750 flat shank 10/Box
12210 8mm (5/16”) w/ 3 flats on shank 1/Box 12207 8mm (5/16") .750 flat shank 25/Box
